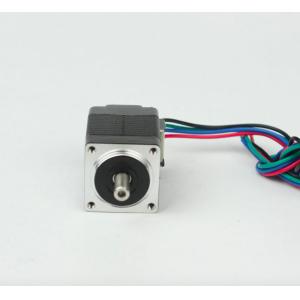

Hybrid Mini Stepper Motor Nema8 20mm Unipolar Step Motor 180g.cm
300g.cm
Stepper motors are known for their accurate positioning
capabilities and high torque delivery at low speeds, but they
require careful sizing to ensure the motor matches the load and
application parameters, to minimize the possibility of lost steps
or motor stalling. Adding a gearbox to a stepper motor system can
improve the motor’s performance by decreasing the load-to-motor
inertia ratio, increasing torque to the load, and reducing motor
oscillations.
1.Genaral Specification:
| Item | Specifications |
| Step Angle | 1.8° |
| Temperature Rise | 80℃max |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Resistance | 100 MΩ Min. ,500VDC |
| Dielectric Strength | 500VAC for 1minute |
| Shaft Radial Play | 0.02Max. (450g-load) |
| Shaft Axial Play | 0.08Max. (450g-load) |
| Max. radial force | 28N (20mm from the flange) |
| Max. axial force | 10N |
2.Electrical Specification:
| Model No. | Step Angle | Motor Length | Current /Phase | Resistance /Phase | Inductance /Phase | Holding Torque | # of Leads | Motor Weight |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | Kg |
| HJ20HS30-0604 | 1.8 | 30 | 0.6 | 6.5 | 1.7 | 180 | 4 | 0.06 |
| HJ20HS33-0604 | 1.8 | 33 | 0.6 | 6.5 | 1.7 | 200 | 4 | 0.07 |
| HJ20HS38-0604 | 1.8 | 38 | 0.6 | 10 | 5.5 | 300 | 4 | 0.08 |
| HJ20HS42-0804 | 1.8 | 42 | 0.8 | 5.4 | 1.5 | 400 | 4 | 0.09 |
3.Our service:
We do also manufacture other products,such as
Nema8 , nema11 , nema14 , nema17 , nema23 , nema24 , nema34 ,
nema42 , nema52 stepper motor;
Nema11 , nema17 , nema23 , nema24 , nema34 stepper motor with
gearbox.
Linear stepper motor , closed loop stepper motor , stepper motor
with brake , stepper motor sriver;
42mm , 57mm , 60mm , 80mm , 86mm , 110mm , 130mm brushless dc
motor;
Bldc motor with gearbox , bldc motor driver;
Brush dc motor , spindle motor , ac servo motor kit , couplings ,
pulley , power supply and so on.
4.FAQ:
Q1:Are you manufacturer ?
A1:Yes, we are the manufacturer of gear motor and planetary gearbox.
Q2 : What specifications we need before you place an order?
A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.
Q3 : What is the price ?
A3 : Price always depends on quantity, we offer range pricing
Q4 : Is it customized ?
A4 : Yes, different clients have different requirements, so we customize for you.
5. Applications:
Computer controlled stepper motors are a type of motion-control
positioning system. They are typically digitally controlled as part
of an open loop system for use in holding or positioning
applications.
In the field of lasers and optics they are frequently used in
precision positioning equipment such as linear actuators, linear
stages, rotation stages, goniometers, and mirror mounts. Other uses
are in packaging machinery, and positioning of valve pilot stages
for fluid control systems.
Commercially, stepper motors are used in floppy disk drives,
flatbed scanners, computer printers, plotters, slot machines, image
scanners, compact disc drives, intelligent lighting, camera lenses,
CNC machines and, more recently, in 3D printers.
